Upgrade pak for EasySplit 220™, Dryer Buddy™ PLUS and Dryer Buddy™ Plus AUTO's on order (waiting for build) to OUTDOOR remote EVSE outlet

  • 11949


New configuration with new Polycarbonate case!

This is an Order Upgrade Pak for pending EasySplit 220™, Dryer Buddy™ PLUS and Dryer Buddy™ Plus AUTO's orders of any number that have the following outlets on the right side of the face which is the EVSE outlet; NEMA 10-30, 10-50, 6-30, 6-50, 14-30, 14-50, As well as the following Twist-Lock outlets; NEMA L6-20, L14-20, L6-30, L14-30. It upgrades the order to a Triple Play + Remote Outlet so that the EVSE outlet is now a Outdoor remote outlet on a captive whip.

The right outlet on the EasySplit 220™, Dryer Buddy PLUS and Dryer Buddy Plus AUTO becomes a local convenience outlet. It will be the same NEMA model as the EVSE outlet (other outlets available by request). It is part of the EVSE circuit and works the same as the remote EVSE outlet, but may be wired as an always-on outlet upon request or connected to the Dryer outlet sensing circuit upon request. This Triple Play outlet can have many uses. For example If the EVSE outlet is a NEMA 10-30 as found on a Dryer Buddy #1 then the local convenience outlet will be a 10-30, If the EVSE outlet is a NEMA 14-50 as found on a Dryer Buddy #4 then the local convenience outlet will be a 14-50. This Upgrade Pak is not for existing units that are already built.


You must have a EasySplit 220™, Dryer Buddy PLUS or Dryer Buddy Plus AUTO on order FIRST or in your cart before adding this Upgrade Pak, purchasing this upgrade doesn't include an EasySplit 220™ or Dryer Buddy, it is an Upgrade Pak as titled.

If this Upgrade Pak is ordered after 2 business days (M-F) from the original order you must contact BSA Electronics first to see if your original order qualifies as it may be too far along into the build process.

You must select the correct Power Input Cable from the options above that your unit on order has, this affects the remote cable used. For example EasySplit 220™ and Dryer Buddy #1, #4 & #11 have a 3-prong Power Input Cable, Dryer Buddy #2 & #5 have a 4-prong Power Input Cable.

By default the cable will be installed to exit the bottom of the outlet box, but may exit the rear by request, simple enter a note in the notes box at checkout.

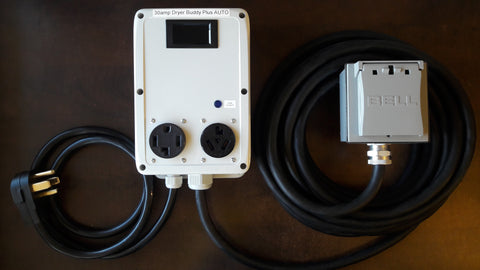

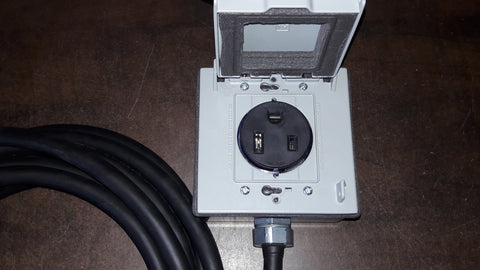

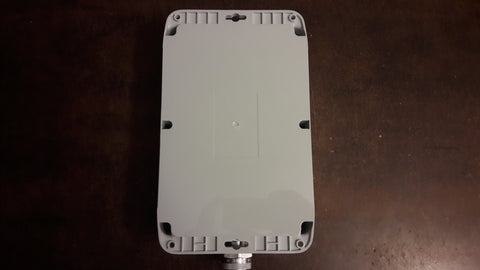

The pic shown is of a Dryer Buddy Plus AUTO #2 with an Outdoor remote EVSE outlet and is only for illustration purposes to show the remote outlet and whip. Your unit will have the outlets as you order it. It will have the outdoor outlet box with cover as described. It will come in the rectangular Polycarbonate case seen on the EasySplit 220™, Dryer Buddy PLUS, Dryer Buddy Plus AUTO product page.

Features:

  • Dryer outlet stays the same
  • Duplicates the EVSE outlet (on the right of face) to a outdoor remote outlet of the same connector type
  • Triple Play outlet on right side of face is now a local convenience outlet (also wired to EVSE circuit by default)
  • 10ga. 30amp Black rubber whip (captive, doesn't disconnect from DB box)
