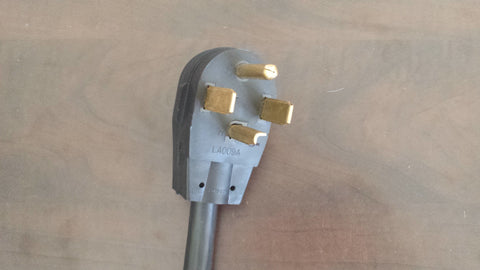

Dryer Buddy™ Plus Auto #2 Custom 30A 2-way switcher, 5.5' 14-30 plug cable (before 1996) to two 14-30 outlets, with kWh meter

  • 36199


The new fully automatic Dryer Buddy is here!

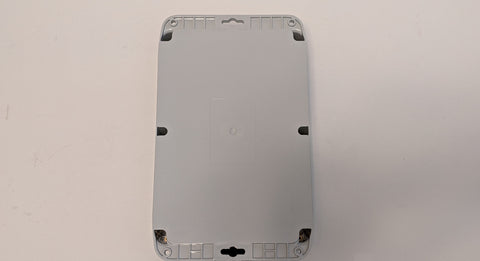

The Dryer Buddy Plus AUTO is a fully automatic 2-way switcher based on the original Dryer Buddy Plus It allows you to share your dryer outlet with your EVSE without having to flip any switches. Basic operation is simple, the Dryer outlet is always live and the EVSE outlet is only live when there is enough amperage available to charge your EV. When the Dryer is off it is drawing little to no amps so the EVSE outlet is switched on allowing your EV to charge. If the Dryer is turned on at any time then the EVSE outlet is switched off, when the Dryer is done, power is restored to the EVSE outlet and if your EV needs charging it will resume charging. Designed so other members of the house don't have to understand anything technical to use the Dryer when they need to do a load of laundry. Great for apartment dwellers, temp housing or an easy hookup at a friend’s/relatives house. Housed in a solid 6x6x4 PVC gray box.

I used the Blue kWh meter that's an option in my custom build EVSE's. 100A Volts/Amps/Watts/kWh Meter. This keeps track of how much Energy you are using so you know how much $ in electricity you’ve used, by simple multiplying the value by your utilities rate (0.13/kWh here in Vegas) The meter is wired to read system Voltage and only meter the Current flowing through the EVSE outlet, unlike the original Dryer Buddy where the meter reads all Current flowing through the unit. In this configuration the Kilowatt Hours (kWh's) will only accumulate for Energy flowing through the EVSE outlet (on the right of the face) this value is stored between power outages and may be reset when you like. This allows you to see only the Energy your Electric vehicle has consumed.

See my demo video here of a very similar unit:  https://youtu.be/tWbsAitIe4I

Dryer Buddy vs. Dryer Buddy PLUS vs. Dryer Buddy Plus AUTO

The original Dryer Buddy model is a splitter (both outlets always live), You can add one of two Upgrade Paks for manual or automatic operation, an Upgrade Pak essential allows you to pay the difference in cost between the original Dryer Buddy and the Dryer Buddy Plus AUTO or Dryer Buddy PLUS AUTO.

What is a Dryer Buddy Plus? The Dryer Buddy Plus is a manual 2-way switcher based on the original Dryer Buddy. It allows you to share your Dryer outlet with your EVSE or any appliance like a Bitcoin miner. Only one outlet is live at a time, by default it’s the dryer outlet (on the left) with a flip of the switch, power is toggled to the EVSE outlet only. Designed so other members of the house don’t accidentally start the Dryer while you’re charging your EV;

The Dryer Buddy Plus AUTO is a fully automatic 2-way switcher based on the original Dryer Buddy Plus It allows you to share your Dryer outlet with your EVSE without having to flip any switches. Basic operation is simple, the Dryer outlet is always live and the EVSE outlet is only live when there is enough amperage available to charge your EV. When the Dryer is off it is drawing little to no amps so the EVSE outlet is switched on allowing your EV to charge. If the Dryer is turned on at any time then the EVSE outlet is switched off, when the Dryer is done, power is restored to the EVSE outlet and if your EV needs charging it will resume charging. Designed so other members of the house don't have to understand anything technical to use the Dryer when they need to do a load of laundry, See my demo video here:  Dryer Buddy Plus AUTO with kWh meter Demo

For the PLUS and Plus Auto models the meter is wired to read system Voltage and only meter the Current flowing through the EVSE outlet, unlike the original Dryer Buddy where the meter reads all Current flowing through the unit. In this configuration the Kilowatt Hours (kWh's) will only accumulate for Energy flowing through the EVSE outlet (on the right of the face) this value is stored between power outages and may be reset when you like. This allows you to see only the Energy your Electric vehicle has consumed.

Need some extra length between your Dryer outlet and Dryer Buddy™ or between the Dryer Buddy™ and your Electric Vehicle Charging Station (EVSE)? I custom build extension cords to the length your need and with the plug and outlet of your choice, see my extensions in the Adapter’s section for several models; Extension Cords

Email me with your custom request; bsaelectronics@hotmail.com
