Power Buddy™ #11 Heavy Duty 60A 240v Splitter, 14-60 4ga. input cable to two 6-30 outlets
The Power Buddy™ collection is comprised of custom power products with many various input-output combinations. If you have a specific need, let us know, custom request are what BSA Electronics specializes in. All of our custom products are hand built here in the USA!
Power Buddy #11 Heavy Duty version has a hand built oversized 4 gauge power cable that provides for even less voltage drop and operating temps for maximum efficiency. The power cord's plug features an ergonomically designed fluted body with gripping ridges which creates an ideal surface for gripping and pulling. This 90 degree angle plug allows you to get a good grip on it while allowing the cable to hang straight down. Internally this monster 14-60 plug uses larger lugs made to accept 4 gauge and provide a superior and reliable electrical connection. The brass blades are also noticeably stronger than other plugs. The direction of the cable can be customizes to your choice of 4 positions! By default the U shaped ground pin is up. Please add a note to your order at checkout if you would like another orientation.

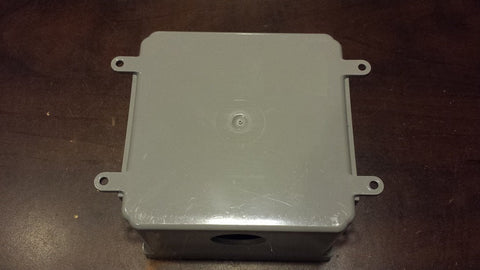

This unit allows you to plug in two NEMA 6-30 (240v 30amp) plug equipped products into a single NEMA 14-60 (240v 60amp) outlet (240v 60amp) and use them at full rate at the same time. Housed in a solid 6x6x4 PVC gray box. This unit looks similar to my Welder Buddy™
Need some help identifying your wall outlet? We can help! Below is a description of the more common NEMA outlets and their numbers as well as some handy NEMA plug charts. You can also email us a pic of your plugs and outlets you need help identifying and we would be happy to help.
Here are the more common NEMA outlets:
- 5-15 standard 15A 120 volt household outlet, the most common you see everywhere.
- 5-20 standard 20A 120 volt household outlet, required by code in bathroom and behind your refrigerator.
- 6-15 standard 15A 240 volt household outlet, found in homes and motels for running in-wall Air Conditioners, it’s the smaller brother to the NEMA 6-20 outlet. The 5-20 is not as common as a 6-20 outlet with it’s “T” shaped slot as it will accept both 6-20 and 6-15 plugs.
- 6-20 standard 20A 240 volt household outlet, found in homes and motels for running in-wall Air Conditioners, also found occasionally in residential garages.
- 6-50 standard 50A 240 volt 3-prong outlet, found in shops and garages used for large welders.
- 10-30 standard 30A 240 volt 3-prong Dryer outlet found in homes build before 1996
- 14-30 standard 30A 240 volt 4-prong Dryer outlet found in homes build in 1996 and newer
- 14-50 standard 50A 240 volt 4-prong Range (electric stove top) outlet, also called RV-50 at the RV parks. By far the best universal connector to have for an EVSE. This is the one the Tesla guys install in their garages.
- TT-30 (Travel Trailer 30amp) 30A 240 volt 3-prong outlet, the older style found in RV parks, not used in residential homes.
- L6-30 (locking 240 volt 30amp) Twist-Lock 30A 240 volt outlet, my personal favorite locking connector, easy to find in stores, works great for adding adapters to portables EVSE’s equipped with a L6-30 plug.
220/240 volt outlets are commonly install with the ground pin towards the ceiling for safety. 110/120 volt outlets can be found mounted in all directions. Be sure to carefully look at your outlet and the chart, it's easy to mistake one outlet for another if your outlet has it's ground pin facing the floor instead of the ceiling or Vice Versa compared to the chart.
In the full NEMA number you will see a capital R or P. The R stands for Receptacle (outlet) and the P stands for Plug, we commonly truncate this to just the numbers and add the word receptacle (or outlet) at the end. For example 14-50R becomes 14-50 receptacle or 14-50 outlet.
Need some extra length between your existing outlet and Appliance Buddy™ or between the Appliance Buddy™ and your second Appliance? I custom build extension cords to the length your need and with the plug and outlet of your choice, see my extensions in the Adapter’s section for several models; Extension Cords
Give you new Buddy unit a techie look with Beautiful Black Socket Head Screws with matching black washers; Black Socket Head Screw and washer Upgrade Pak for all Buddy units
Email me with your custom request
