OpenEVSE Value Series - 16A 3.84kW 240volt Charging Station with RGB LCD & Real Time Clock, Ammeter, WiFi connected

  • 43709
  • Save $ 000

Includes free WiFi option!

16A 3.84kW Value Series OpenEVSE Charging Station with RGB LCD & Real Time Clock, Ammeter, WiFi connected

  • Value OpenEVSE 16A in a beautiful custom case for indoor/outdoor use!

In the package, you will receive:

  • Your very own Value OpenEVSE 16A charging station completely build with the following cables already wired in
    • A Low Temp rubber J1772 "Whip" (plugs into car)

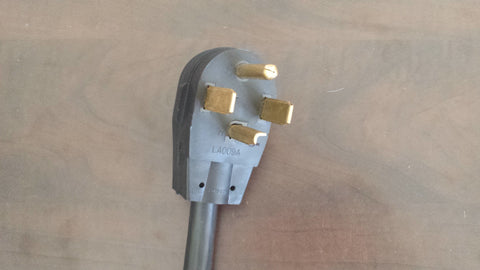

    • A input cable with your choice of popular Dryer plugs and a few others
  • Level 2 240volt fast charging
  • Upgradable to 40amp charging with different input/J1772 cables
  • Built by BSA Electronics in Las Vegas, NV
  • 3 years parts/labor warranty


Product Description

The 16-amp 3.84kW OpenEVSE station is ready to plug into a common 3-prong Dryer Outlet, NEMA 10-30 outlet (240v 30amp), and it works with all production EV’s on the road today. It offers faster charging and more features like a nice LCD at a far lower price than any of the competitors. We keep the price low by building this EVSE with a light weight 16amp J1772 cord, enough to charge any Electric Vehicle that has a 3.8kW on-board charger at max speed. This is the least costly OpenEVSE available!

It is perfect for customers who are tired of long slow charging with their stock “brick” chargers. I can speak from personal experience; my 2013 LEAF went from 24 hr charge time down to 5 hours! Don’t pay the dealer $1500 for an AeroVironment 30A charger with NO LCD that’s permanently on the wall. (That’s what many including myself have been quoted!) Get yourself an OpenEVSE Charging Station and support the open source hardware/software movement.


  1. More power and features for the money than any other charging station
  2. Can be used with any power source: Plugs into a dryer outlet or RV park outlets, regular wall outlets and more with available adapters. Save hundreds of dollars on installation - Add a DryerBuddy and share your Dryer outlet with this OpenEVSE Charging Station.
  3. Great for both Home or on-the-road charging: OpenEVSE can be removed from the wall via slotted screw holes in seconds if you wish to take it with you as a portable charging option. OpenEVSE is just 8.75"x5"x3.5" and weighs ~12lbs with cables.
  4. Real Time Clock (RTC) for Delayed Charging
  5. Ammeter in display to show how much current your drawing
  6. WiFi monitoring and control from your phone/tablet/PC, no App required
  7. Indoor and Outdoor rated


This Value version gives you all top of the line parts from the OpenEVSE store but at a low enter level price. I used the best LCD.. the RGB model that changes colors for different status and Real Time Clock that allows you to set a delay timer great for those of us that can sign up with discounted night time electric rates. I also added the optional Ammeter that shows current draw in amps right in the LCD, the EVSE keeps track of kW used per session as well as lifetime, with memory!

It will charge any J1772 compliant car at up to 16amps 3.84kW now, upgrade the input/J1772 cables in the future to higher amperage to give you faster charging speeds in the future, al while enjoying the premium experience of a OpenEVSE based Charging Station!


The EVSE may be set in multiple steps between 6A-16A in 2 amp increments. This advertises the available current to the EV which intern draws what it is designed for. You can go into the menu and set it for less if you take the EVSE on the road with you to fit what you may find in the wild.


I can now customize the firmware to whatever values you like before shipping. I chose these values to give the user flexibility for various outlets found in the wild. I stop at 16A as this is what the J1772 cable is rated for. This unit is constructed with a 50 amp relay. It is built to plug into a common 10-30 Dryer outlet found in homes built before 1996. This EVSE can be upgraded with a higher amperage J1772 cable in the future to allow up to 24amps 5.76kW of charging from a Dryer outlet, if both the input and J1772 cables are upgrade this EVSE can offer up to 40amps while plugged into a 50amp outlet.



  • OpenEVSE board
  • A Low Temp rubber J1772 "Whip" (plugs into car)
  • The relay is a quality 50amp unit

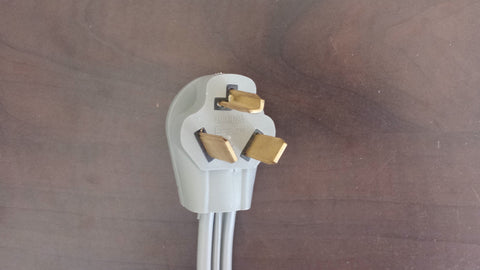

  • The input cable is 30amp 10ga. with the popular NEMA 10-30 Dryer plug. This is the one found in homes built before 1996, other plugs available.

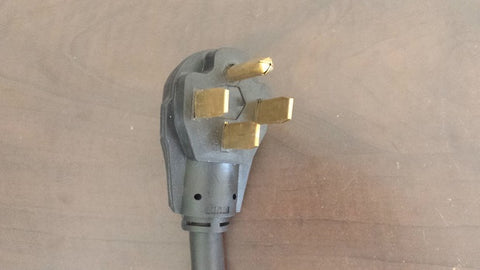

  • Plug in a RV parks with an optional NEMA 14-50 to 10-30 adapter, You can use the PlugShare app and set the filters to include NEMA 14-50 and see all of them in the country, there are a surprising number of them.
  • It has a nice RGB LCD display.
  • Ammeter for on screen amperage draw plus watt-hour (Wh) session meter and lifetime kilo-watt-hour (kWh) meter on LCD
  • WiFi monitoring and control from your phone/tablet/PC, no App required
  • I used a non-illuminated metal Menu/Select button. With IP65 water resistance rating
  • Heat shrink tubing used throughout.
  • All parts are new.


Here is a link to me demoing a similar unit:



If you would like this unit customized with a twist lock plug for example or something other than what you see here I can do that for the difference in parts. For example a L6-30. This would allow you to use many adapters. I also build custom adapters, Please email me with your custom request.


Custom order possibilities:

I get a lot of inquires about custom builds. YES I definitely take orders for anything you would like to see in your EVSE. Example I can build this unit with a 32amp J1772 cable making this a 24amp 5.76kW EVSE. Feel free to ask a question.

It will charge any J1772 compliant including home built/converted cars with a J1772 inlet installed.

New Tax Credit now available!

Federal tax credit for installing EV charging equipment. The tax credit for EV charging equipment is officially called the Alternative Refueling Tax Credit (IRS Section 30(C)). For Consumers, this allows for a 30% tax credit up to a total of $1,000 on EV charging equipment, including installation. The IRS will provide new forms for this tax credit early in the year. Please check with your tax accountant to verify that you qualify.

Case Specs:

  • 8.75 x 5.25 x 3.30 in. / 222.25 x 133.35 x 83.82 mm
  • UL Listed to UL 508A, Type 1, 2, 4, 4X, 12 and 13 specifications (File E352997)
  • Designed to IP66 of IEC 529 specifications
  • Silicone rubber gasket makes this ideal for outdoor use in a wide range of conditions
  • Surface-mounting flanges
  • Stainless steel screws thread into brass inserts for reliable cover seal.
  • Durable, impact-resistant UV Stabilized Polycarbonate material with polished finish


Main Board Specs:

  • Open Source - Hardware (Creative Commons 3.0 BY-SA) and Firmware (GNU GPL v3)
  • Fully supports SAE J1772 Recommended Practice
  • Software adjustable pilot
  • 4W Switch Mode Power Supply Integrated
  • Built in GFCI with 20ma trip point
  • Supports all J1772 states including "ventilation required"
  • Supports Diode check
  • AC L1 -- L2 auto detect Current setting for each
  • Ground verification and Stuck Relay detection
